A cardiac hybrid imaging technique that fuses SPECT myocardial perfusion imaging (MPI) with coronary CT angiography (CCTA) scans can help predict major adverse cardiac events in patients suspected of having coronary artery disease, according to a study published online July 3 in Radiology.
In a retrospective study, researchers from Switzerland used software-based cardiac hybrid image fusion to analyze patients who underwent CCTA and SPECT MPI exams. They discovered that patients with abnormal findings on cardiac hybrid imaging had a significantly greater risk of experiencing a major adverse cardiac event, including death (Radiology, July 3, 2018).
The comprehensive assessment of coronary artery disease offered by cardiac hybrid imaging may optimize treatment decision-making and minimize unnecessary invasive intervention, senior author Dr. Philipp Kaufmann, chair of nuclear medicine and director of cardiac imaging at University Hospital Zurich, told AuntMinnie.com.
"For risk stratification, a hybrid image confers more information than any other modality, particularly in those with a pathologic finding," he said. "The most important implication for evaluation of known or suspected stable coronary artery disease is that [cardiac hybrid imaging] allows patients to be evaluated noninvasively."
2 modalities are better than 1
Dr. Philipp Kaufmann from University Hospital Zurich.
One method that may compensate for the shortcomings of each individual imaging modality is cardiac hybrid imaging, which fuses images from CCTA and MPI and provides the anatomic and functional information of both at once, Kaufmann noted. Several studies have demonstrated the technique's increased diagnostic value over examining images from each modality alone or side by side.
"Particularly in patients with multiple lesions or complex coronary anatomy, it is, in many cases, very difficult to correctly identify the culprit lesion," he said. "Only a comprehensive assessment of both pieces of information with hybrid imaging allows [physicians] to correctly assign a coronary artery with a lesion to the ischemic territory."
Exploring the prognostic potential of cardiac hybrid imaging, Kaufmann and colleagues evaluated patients who underwent both CCTA and SPECT MPI at their institution between May 2005 and December 2008. To fuse the MPI and CCTA datasets, they used cardiac imaging fusion software running on a postprocessing workstation (CardIQ Fusion; Advantage Workstation 4.3, GE Healthcare).
They separated the resulting hybrid imaging data into three distinct categories:
- Cases with both 50% or greater stenosis on CCTA and evidence of ischemia on MPI suggesting coronary artery disease
- Cases with either stenosis on CCTA or ischemia on MPI
- Cases with normal findings on CCTA and MPI
The researchers compared the effectiveness of each scenario for predicting major adverse cardiac events, including death, heart attack, unstable chest pain, and coronary revascularization. In all, there were 160 cardiac events recorded in the study population within the 10-year follow-up period.
Long-term prognostic value
Among 375 patients, cardiac hybrid imaging showed that 46 had both 50% or greater stenosis and ischemia, 113 had only one or the other finding, and 216 had entirely normal findings.
The group found that a matched finding, i.e., indicating both stenosis and ischemia, was associated with more than five times the risk of a major adverse cardiac event compared with normal findings. The presence of only one of the abnormal findings was associated with over three times the risk of a cardiac event compared with normal findings.
| Cardiac hybrid imaging for predicting major adverse cardiac events | |||
| Normal finding | Stenosis on CCTA or ischemia on SPECT MPI | Stenosis on CCTA and ischemia on SPECT MPI | |
| Rate of major adverse cardiac events | 2.4% | 9% | 21.8% |
The results consistently demonstrated that patients whose cardiac hybrid imaging data identified both stenosis and ischemia had a considerably worse outcome than patients with either one of the signs alone or neither of the abnormal signs. Patients with altogether normal imaging test results had a very favorable long-term prognosis.
These findings confirm the excellent risk stratification ability of cardiac hybrid imaging in patients who are suspected of having coronary artery disease, Kaufmann said. They also support the use of CCTA as an initial, noninvasive evaluation of such patients, followed by MPI only for patients with abnormal CCTA results.

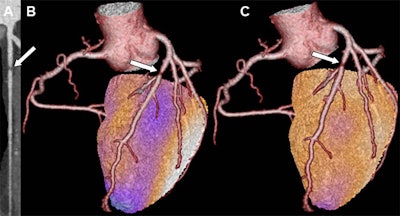

Multiplanar contrast-enhanced coronary CT angiography reconstruction shows a stenosis in the proximal left anterior descending artery (A). Cardiac hybrid imaging fuses coronary CT angiography with SPECT myocardial perfusion imaging, showing a matched perfusion defect in the same artery (B, C). Image courtesy of RSNA."We should start with a coronary CT angiography exam and, if normal, we can stop testing there," he said. "But if there is a lesion, we should assess ischemia with a nuclear scan (SPECT or PET MPI), and if there is an ischemia, we should take full advantage of both modalities by fusing the results together to make a hybrid image."
'Radiologists may be key'
Ultimately, the extensive assessment of coronary artery disease provided by cardiac hybrid imaging optimizes treatment decision-making and minimizes unnecessary invasive angiographies, according to the authors. What's more, using this technique could potentially improve the low yield of diagnostic invasive coronary angiography and facilitate evidence-based coronary interventions.
A conspicuous limitation of cardiac hybrid imaging is that it requires an increase in effective radiation dose (roughly 10 mSv in all) because it involves two contrast-enhanced imaging exams rather than just one, the authors noted. However, clinicians may be able to lower this elevated radiation dose by applying reconstruction algorithms.
Another major barrier seems to be the limited knowledge of guidelines and proper implementation of methods for evaluating patients with stable coronary artery disease, Kaufmann said.
"Unfortunately, structures of hospitals do not always facilitate hybrid imaging, because CT is 'owned' by one department and SPECT or PET by another, which may be an obstacle for the combination of datasets from different modalities," he said. "Radiologists may be key in helping clinicians to refer to the best noninvasive test by knowing the technical and clinical guidelines in general (and not only our own for radiology), and by being involved in the multidisciplinary boards."
In the near future, the researchers hope to conduct a trial demonstrating the positive impact hybrid imaging can have on patient outcomes. They also plan on developing a "triple hybrid" imaging technique that combines CCTA and SPECT MPI scans with information concerning coronary artery shear stress. They believe that adding information about shear stress to hybrid imaging could help identify lesions that do not yet affect ischemia but may in the future.
